SKU: GEB-111.383.00.5

Geberit Duofix Wall Hung WC Toilet Frame with Concealed Cistern - 12DSS

RRP £498.38 £299.03
- +
Only 1 Left

See All Products with Special Offers


Delivered within 4-10 days

Larger Items - £29.99

Free for orders over £499

More Info
BOOK your Free 3D virtual Design Consultation today - let us design your dream

Product Details

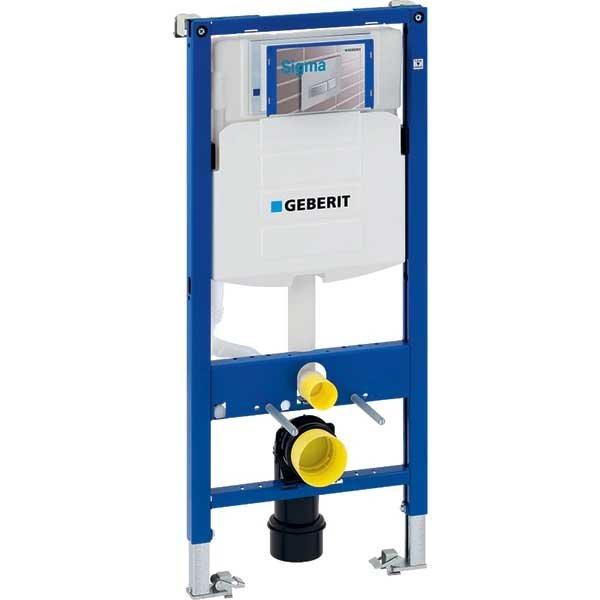

Geberit Duofix UP3201 WC Toilet Frame 1120mm With 120mm Sigma Cistern, Pre-Wall, Blue
Close coupled toilets which look sleek and modern are hugely fashionable at present and one of the main benefits is that the cistern is hidden away behind the wall. This Gerberit frame with cistern is the bit which goes behind the wall and is totally concealed, hence its unusual looks. Sturdy and functional, this frame and cistern is easy to install and will provide water to a large range of compatible toilet pans.

Swiss company Gerberit is one of the world leaders in this type of toilet construction, and make a wide range of toilet frames and cisterns in different sizes, so if this one isn't the right size for you, take a look at the other sizes which we also stock. If you are thinking about giving your bathroom a makeover or renovation then this could be the perfect starting point, and at a price which we're sure you'll agree is excellent value for money.

Geberit Duofix 111.383.00.5 WC Frame Features:
Concealed cistern with front actuation
With front access to cistern
With wall fixing brackets
With 90 degree drainage bend
With connectors for both flushing inlet and soil disposal
Designed to fix WC spigots of 102mm +or-5mm
Suitable for Sigma flush plates and remote buttons
Installation depth of 140 - 200mm
Frame with 9 mm drilling holes for fastening in wood frame construction
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
Connection bend can be mounted without tools at different depths, adjustable range 45 mm
Fastening for connection bend, sound-absorbing
Concealed cistern with front actuation, fully insulated against condensation
Tool-free installation and maintenance work on concealed cistern
Protection cover box for service opening protects against moisture and dirt
Protection box for service opening can be cut to length
Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
Flush plate sold separately, (See the You May Need)
Comes with an extensive 1 year guarantee from Geberit

Flush Type Dual Flush
Width 500mm
Height 1120mm
Cistern Included Yes
Material Steel
Finish Blue
Collection Duofix
Style Contemporary
EAN Barcode 4025416758570
Manufacturer Part Number 111.383.00.5



Width (mm)136
Depth (mm)526
Height (mm)1148
Dual FlushYes

Product and Range Information


The Geberit Group is a European leader in the field of sanitary products, operating with a strong local presence in most European countries, providing unique added value when it comes to sanitary technology and bathroom ceramics.

With 29 production facilities and based in Rapperswil-Jona, Switzerland, sustainability is a main focus from Geberit. Environmentally friendly, resource-saving and durable products and solutions for green building, production processes that minimise water and energy consumption, and clean potable water have been key topics for Geberit for many years.

Geberit products are the perfect balance of elegant design and outstanding functionality, manufactured from high-quality, durable materials. Easy clean, straightforward to use and maximising comfort.
