Overview
ThermoSphere Membrane Underfloor Heating System - Heating and decoupling in one.
Underfloor heating systems have numerous benefits versus radiator based systems. Traditional convection radiators are highly inefficient and distribute heat unevenly, resulting in drafts and temperature variances within in a room. They also have to be set to a higher temperature to achieve the desired comfort level increasing the heat loss and increased energy bills. However, underfloor heating systems provide comfortable, even temperatures within a room whilst being extremely energy efficient with rapid heat up times and accurate temperature control. If the heating system is under the whole floor you can save money through lowering the ambient temperature by 2°C without loss of comfort. They also have the added benefits of being maintenance free, reducing allergy symptoms and providing you with interior design freedom from unsightly radiators.
The ThermoSphere Membrane is an award-winning electric underfloor heating system suitable for tile and stone floors. It is a proven combined electric underfloor heating and decoupling system and an easy way to create warm floors and comfortable rooms while protecting tile or stone floors from cracking and delamination. Rated for extra heavy use, ThermoSphere membrane is one of the most robust heated uncoupling systems available.

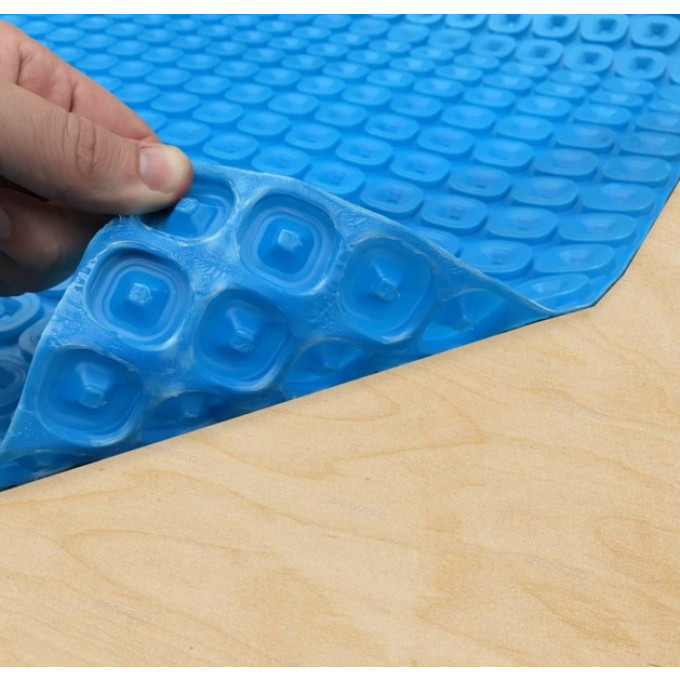

There's no need to buy extra tile adhesive, if you choose the self-adhesive option, just stick it straight onto plywood or OSB sub floors. The self-adhesive is the strongest available in the UK and also saves you 3mm of floor height.

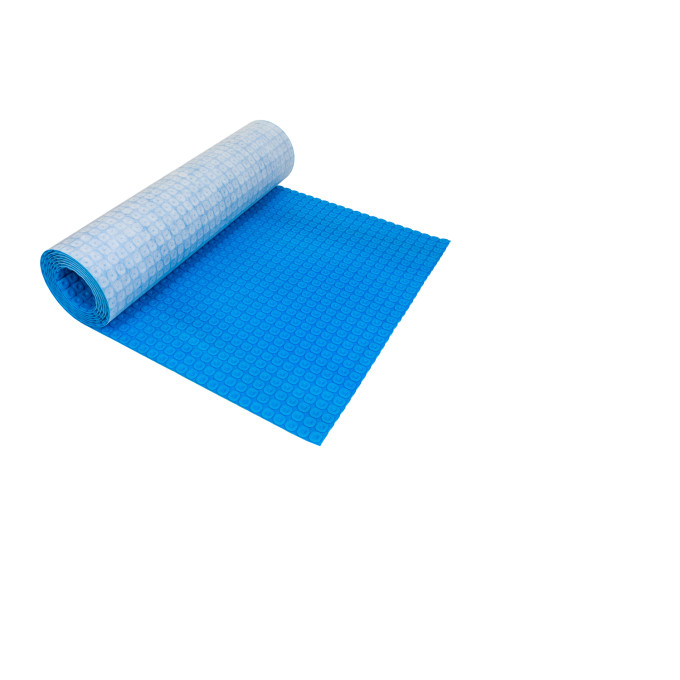

ThermoSphere Membrane provides heating, decoupling, water proofing, load bearing and vapour management properties all wrapped up in one easily installed system. Available as a fleece-backed or self-adhesive option, you can easily choose the system that is right for your project. No matter what you choose, you will benefit from the same great features.
The quick and easy installation of a heated waterproof floor built to withstand movements in the substrate and protect your tile installation from damage.

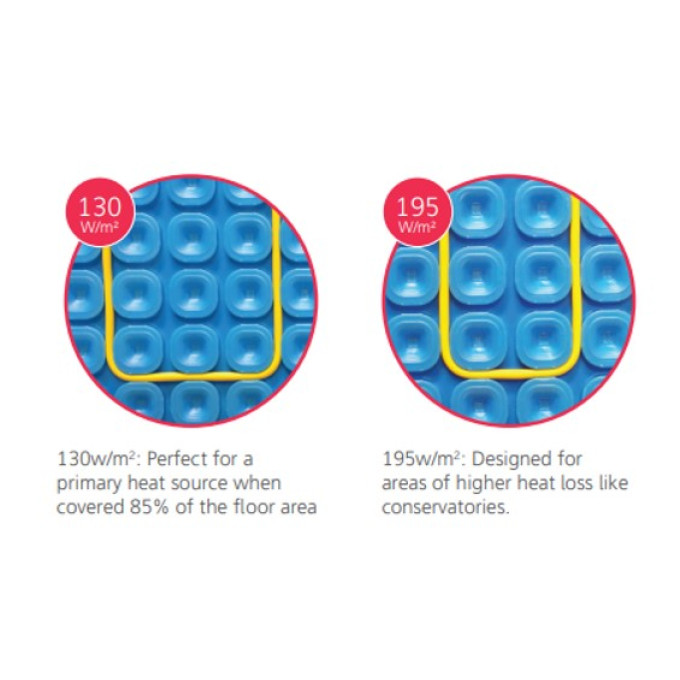

The membrane is designed to hold ThermoSphere membrane heating cables at variable spacing depending on the required output. You do this by changing the spacing between the cable. Use a two-stud spacing for an output of 195W/m2 (ideal for wet rooms) and a three-stud spacing for an output of 130W/m2 (great for well-insulated buildings).
The uncoupling layer neutralises the stress caused by different rates of expansion and contraction in a tiled floor. This minimises the risk of tile delamination and cracking. Heavy loads are no problem for floors that include a layer of ThermoSphere membrane. The stud structure transfers the load to the sub floor without risking cracks and is suitable for use in high traffic areas.
The studs and fleece backing in the membrane allow water vapour to escape effectively. This means you can save time by tiling over a substrate that is not fully cured.
The advanced waterproofing properties make ThermoSphere Membrane a perfect fit for wet rooms, and provide a fast and easy way to create a heated wetroom. It can be installed on walls as well as floors and sealed against moisture and liquid by using the ThermoSphere Waterproofing Kit.

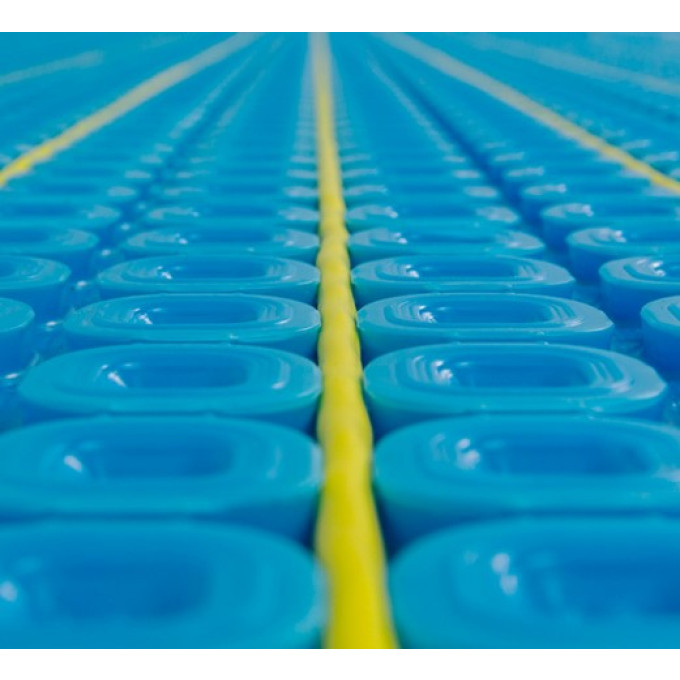

The unique TwistedTwin heating cable technology reduces cable stress which helps to create a safer, longer lasting heating cable making it the most robust heating cable available. The heating cable is pressed in-between dimples (or studs) of the membrane which protects the cable from any damage caused by a heavy hand using a trowel.

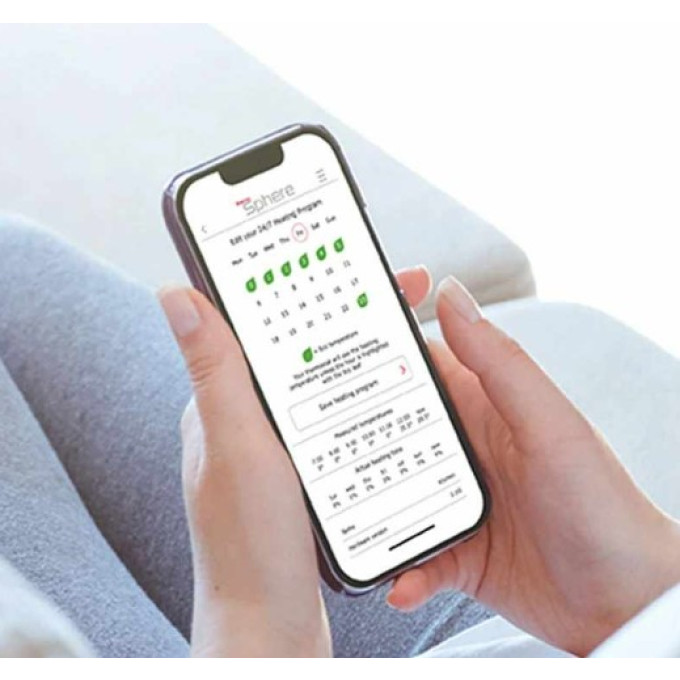

You can also maximise the efficiency of your electric underfloor heating system by choosing the thermostat that suits your lifestyle. If you want to control it via an app, then SmartHome or the Bluetooth Programmable Thermostat might just be for you.
Details
ThermoSphere Membrane Underfloor Heating System - Heating and decoupling in one.
Underfloor heating systems have numerous benefits versus radiator based systems. Traditional convection radiators are highly inefficient and distribute heat unevenly, resulting in drafts and temperature variances within in a room. They also have to be set to a higher temperature to achieve the desired comfort level increasing the heat loss and increased energy bills. However, underfloor heating systems provide comfortable, even temperatures within a room whilst being extremely energy efficient with rapid heat up times and accurate temperature control. If the heating system is under the whole floor you can save money through lowering the ambient temperature by 2°C without loss of comfort. They also have the added benefits of being maintenance free, reducing allergy symptoms and providing you with interior design freedom from unsightly radiators.
The ThermoSphere Membrane is an award-winning electric underfloor heating system suitable for tile and stone floors. It is a proven combined electric underfloor heating and decoupling system and an easy way to create warm floors and comfortable rooms while protecting tile or stone floors from cracking and delamination. Rated for extra heavy use, ThermoSphere membrane is one of the most robust heated uncoupling systems available.
There's no need to buy extra tile adhesive, if you choose the self-adhesive option, just stick it straight onto plywood or OSB sub floors. The self-adhesive is the strongest available in the UK and also saves you 3mm of floor height.
ThermoSphere Membrane provides heating, decoupling, water proofing, load bearing and vapour management properties all wrapped up in one easily installed system. Available as a fleece-backed or self-adhesive option, you can easily choose the system that is right for your project. No matter what you choose, you will benefit from the same great features.
The quick and easy installation of a heated waterproof floor built to withstand movements in the substrate and protect your tile installation from damage.
The membrane is designed to hold ThermoSphere membrane heating cables at variable spacing depending on the required output. You do this by changing the spacing between the cable. Use a two-stud spacing for an output of 195W/m2 (ideal for wet rooms) and a three-stud spacing for an output of 130W/m2 (great for well-insulated buildings).
The uncoupling layer neutralises the stress caused by different rates of expansion and contraction in a tiled floor. This minimises the risk of tile delamination and cracking. Heavy loads are no problem for floors that include a layer of ThermoSphere membrane. The stud structure transfers the load to the sub floor without risking cracks and is suitable for use in high traffic areas.
The studs and fleece backing in the membrane allow water vapour to escape effectively. This means you can save time by tiling over a substrate that is not fully cured.
The advanced waterproofing properties make ThermoSphere Membrane a perfect fit for wet rooms, and provide a fast and easy way to create a heated wetroom. It can be installed on walls as well as floors and sealed against moisture and liquid by using the ThermoSphere Waterproofing Kit.
The unique TwistedTwin heating cable technology reduces cable stress which helps to create a safer, longer lasting heating cable making it the most robust heating cable available. The heating cable is pressed in-between dimples (or studs) of the membrane which protects the cable from any damage caused by a heavy hand using a trowel.
You can also maximise the efficiency of your electric underfloor heating system by choosing the thermostat that suits your lifestyle. If you want to control it via an app, then SmartHome or the Bluetooth Programmable Thermostat might just be for you.
Specification
SKU THR-HDM-SA-015
Width (mm) 15000
Height (mm) 15000
Manufacturer ThermoSphere
Manufacturer Range Thermosphere Membrane
Product Code HDM-SA-015
Specification
SKU THR-HDM-SA-015
Width (mm) 15000
Height (mm) 15000
Manufacturer ThermoSphere
Manufacturer Range Thermosphere Membrane
Product Code HDM-SA-015
