Overview
ThermoSphere Foil Underfloor Heating System – high performance heating for wood.
Underfloor heating systems have numerous benefits versus radiator based systems. Traditional convection radiators are highly inefficient and distribute heat unevenly, resulting in drafts and temperature variances within in a room. They also have to be set to a higher temperature to achieve the desired comfort level increasing the heat loss and increased energy bills. However, underfloor heating systems provide comfortable, even temperatures within a room whilst being extremely energy efficient with rapid heat up times and accurate temperature control. If the heating system is under the whole floor you can save money through lowering the ambient temperature by 2°C without loss of comfort. They also have the added benefits of being maintenance free, reducing allergy symptoms and providing you with interior design freedom from unsightly radiators.

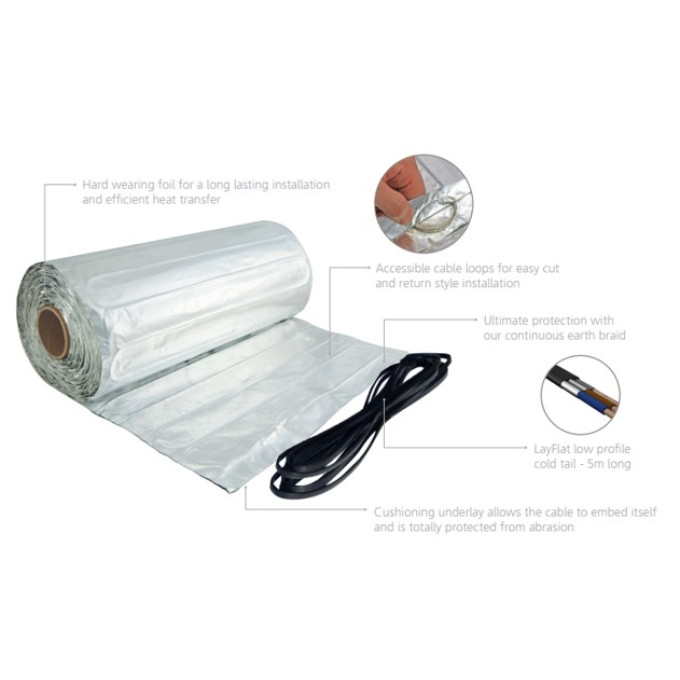

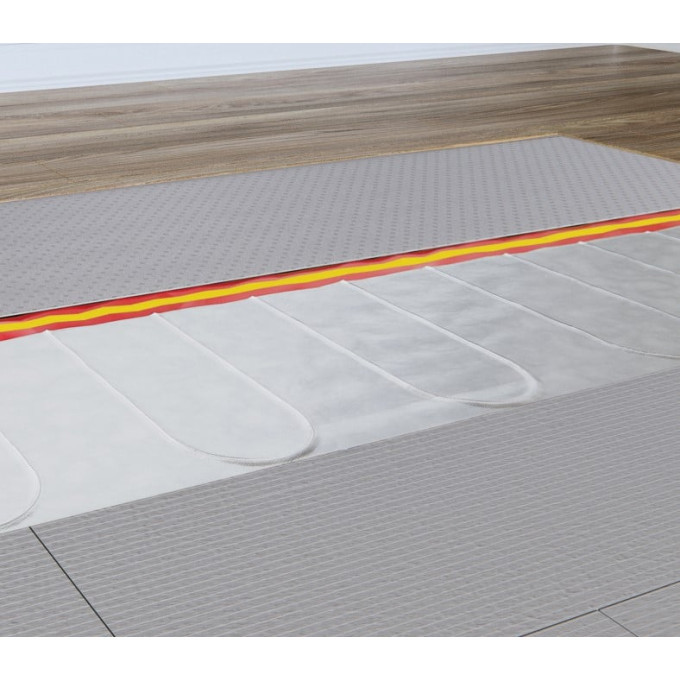

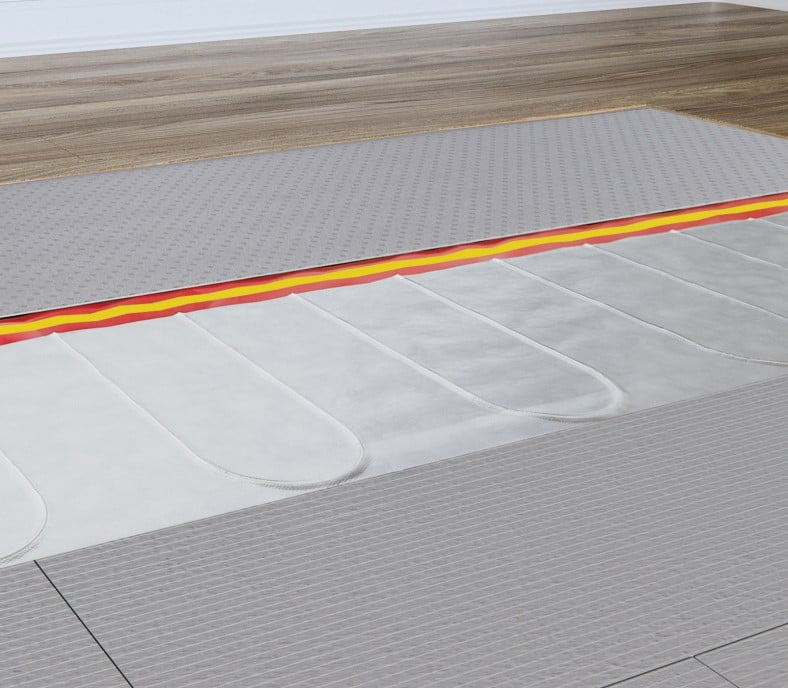

Foil electric underfloor systems are ideal for floating floor finishes such as wood. The heating cable is wrapped by two layers of foil which provides great thermal conductivity and fast heat up times. Unlike similar systems, ThermoSphere Foil has an abundance of features which make it the safest and easiest system to install. The double layer of foil is specifically designed to protect the heating element and achieve an even spread of heat to the floor finish. Accessible cable loops simplify cut and return installation and provide abrasion protection for the heat element. ThermoSphere Foil is the only foil system with a continuous protective earth braid around the heating elements.

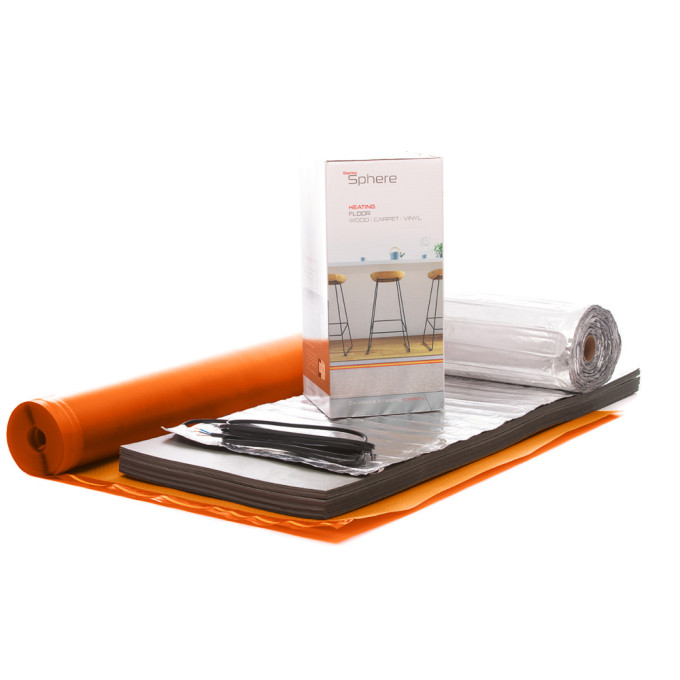

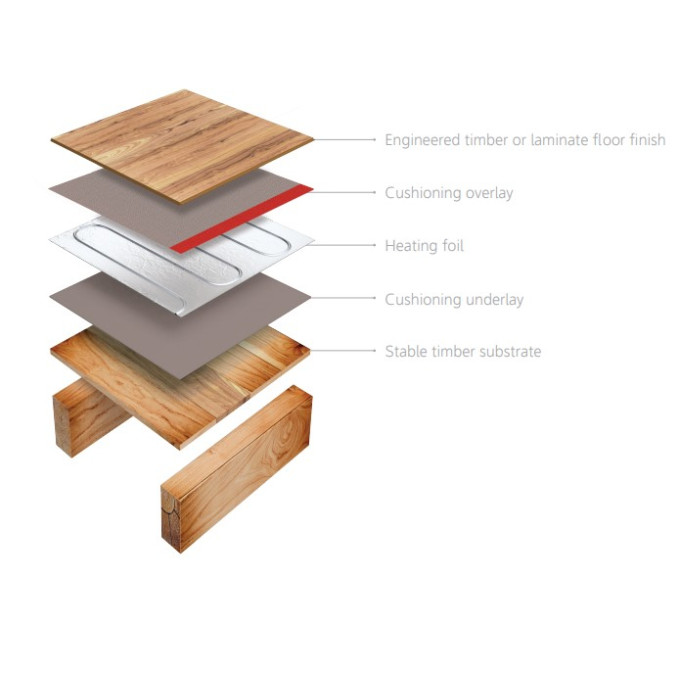

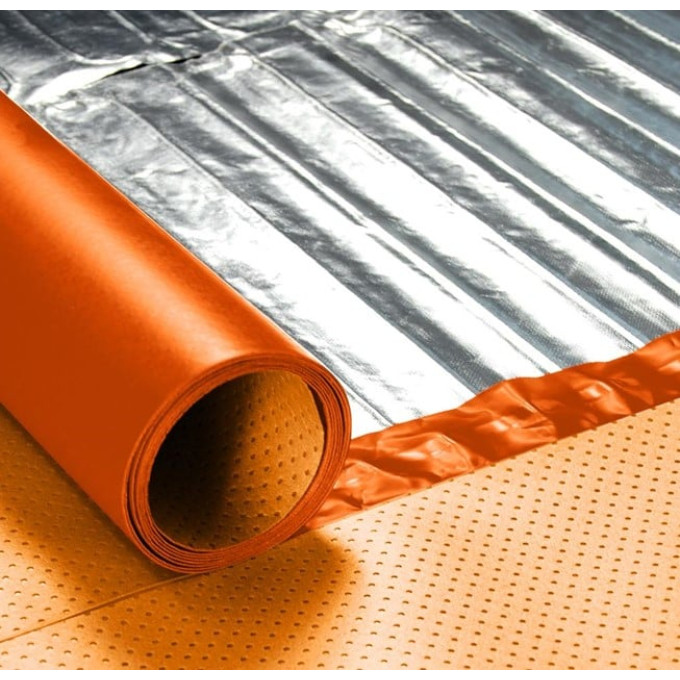

If you like convenience, you can buy a complete ThermoSphere Foil kit which includes everything you need; 140W/m2 ThermoSphere Foil, underlay and our unique cushioning and acoustic overlay. This combination only adds 9mm to the floor build up. The sound impact reduction is a special feature in the combination and is particularly significant in blocks of flats where hearing your neighbour’s footsteps is not uncommon. The combination of the 2mm cushioning overlay and 5mm cushioning underlay provides 19dB impact sound insulation.
In terms of flooring types, traditional solid timber flooring or engineered wood flooring work well with a foil electric underfloor heating system. Board thickness is a key consideration and we would recommend a maximum thickness of 18mm and a floor surface temperature of 270C to not be exceeded. You can even use a foil electric underfloor heating system under carpeted floors! As well as ensuring your carpet doesn't exceed a tog rating of 2.5, it's equally important to not over insulate the layers above your floor heating system.
You can also maximise the efficiency of your electric underfloor heating system by choosing the thermostat that suits your lifestyle. If you want to control it via an app, then SmartHome or the Bluetooth Programmable Thermostat might just be for you.
Details
ThermoSphere Foil Underfloor Heating System – high performance heating for wood.
Underfloor heating systems have numerous benefits versus radiator based systems. Traditional convection radiators are highly inefficient and distribute heat unevenly, resulting in drafts and temperature variances within in a room. They also have to be set to a higher temperature to achieve the desired comfort level increasing the heat loss and increased energy bills. However, underfloor heating systems provide comfortable, even temperatures within a room whilst being extremely energy efficient with rapid heat up times and accurate temperature control. If the heating system is under the whole floor you can save money through lowering the ambient temperature by 2°C without loss of comfort. They also have the added benefits of being maintenance free, reducing allergy symptoms and providing you with interior design freedom from unsightly radiators.
Foil electric underfloor systems are ideal for floating floor finishes such as wood. The heating cable is wrapped by two layers of foil which provides great thermal conductivity and fast heat up times. Unlike similar systems, ThermoSphere Foil has an abundance of features which make it the safest and easiest system to install. The double layer of foil is specifically designed to protect the heating element and achieve an even spread of heat to the floor finish. Accessible cable loops simplify cut and return installation and provide abrasion protection for the heat element. ThermoSphere Foil is the only foil system with a continuous protective earth braid around the heating elements.
If you like convenience, you can buy a complete ThermoSphere Foil kit which includes everything you need; 140W/m2 ThermoSphere Foil, underlay and our unique cushioning and acoustic overlay. This combination only adds 9mm to the floor build up. The sound impact reduction is a special feature in the combination and is particularly significant in blocks of flats where hearing your neighbour’s footsteps is not uncommon. The combination of the 2mm cushioning overlay and 5mm cushioning underlay provides 19dB impact sound insulation.
In terms of flooring types, traditional solid timber flooring or engineered wood flooring work well with a foil electric underfloor heating system. Board thickness is a key consideration and we would recommend a maximum thickness of 18mm and a floor surface temperature of 270C to not be exceeded. You can even use a foil electric underfloor heating system under carpeted floors! As well as ensuring your carpet doesn't exceed a tog rating of 2.5, it's equally important to not over insulate the layers above your floor heating system.
You can also maximise the efficiency of your electric underfloor heating system by choosing the thermostat that suits your lifestyle. If you want to control it via an app, then SmartHome or the Bluetooth Programmable Thermostat might just be for you.
Specification
SKU THR-HFK-140-0900
Width (mm) 9000
Height (mm) 9000
Ean 5056257302560
Manufacturer ThermoSphere
Manufacturer Range Thermosphere Foil
Product Code HFK-140-0900
Specification
SKU THR-HFK-140-0900
Width (mm) 9000
Height (mm) 9000
Ean 5056257302560
Manufacturer ThermoSphere
Manufacturer Range Thermosphere Foil
Product Code HFK-140-0900
